Universal Mounting Frame AK-Set

Universal Mounting Frame AK-Set

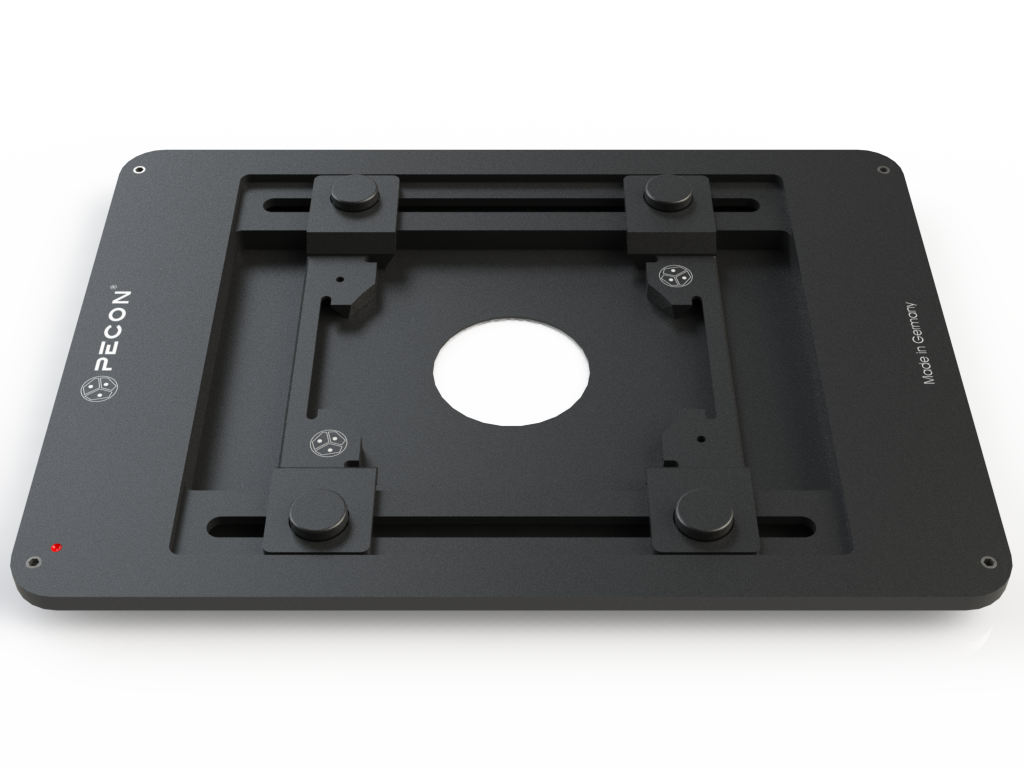

This flex­i­ble frame with three exchange­able base plates is designed for the fix­a­tion of dif­fer­ent cell cul­ture ves­sels on scan­ning or mechan­i­cal stages on upright microscopes.

Description:

  • Three exchange­able base plates for var­i­ous cell cul­ture ves­sels; fix­a­tion by the enclosed screws (fig.: base plate with open­ing Ø 29.0 mm)
  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended
  • Local CO2  and O2  gassing with the suit­able components

Specifications:

Material aluminium, black anodized
Clamping range max. 101.0 mm; min. 27.0 mm
Specimen size circular: max. Ø 68 mm rectangular: max. length 101.0 mm; max. width 27.0 mm
Observation openings circular Ø 29.0 mm; Ø 46.0 mm slotted 49.0 x 26 mm
Dimensions (LxWxH) 160 x 116 x 10 mm
Weight 170 g
Request for pricing and availability
Universal Mounting Frame AK-Set

Requirements:

  • none

Compatibility:

  • Scanning or mechanical stages with a rectangular opening of 160 x 116 mm on upright microscopes
  The following insert plates for a variety of cell culture vessels are included:

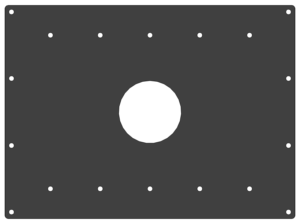

Petri dishes "35", POC-R2 and POCmini-2

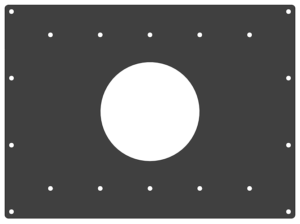

Petri dishes "60"

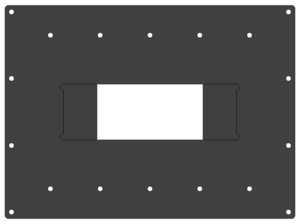

Object Slides

Compatible PeCon Products:

Application Examples:

  • none
