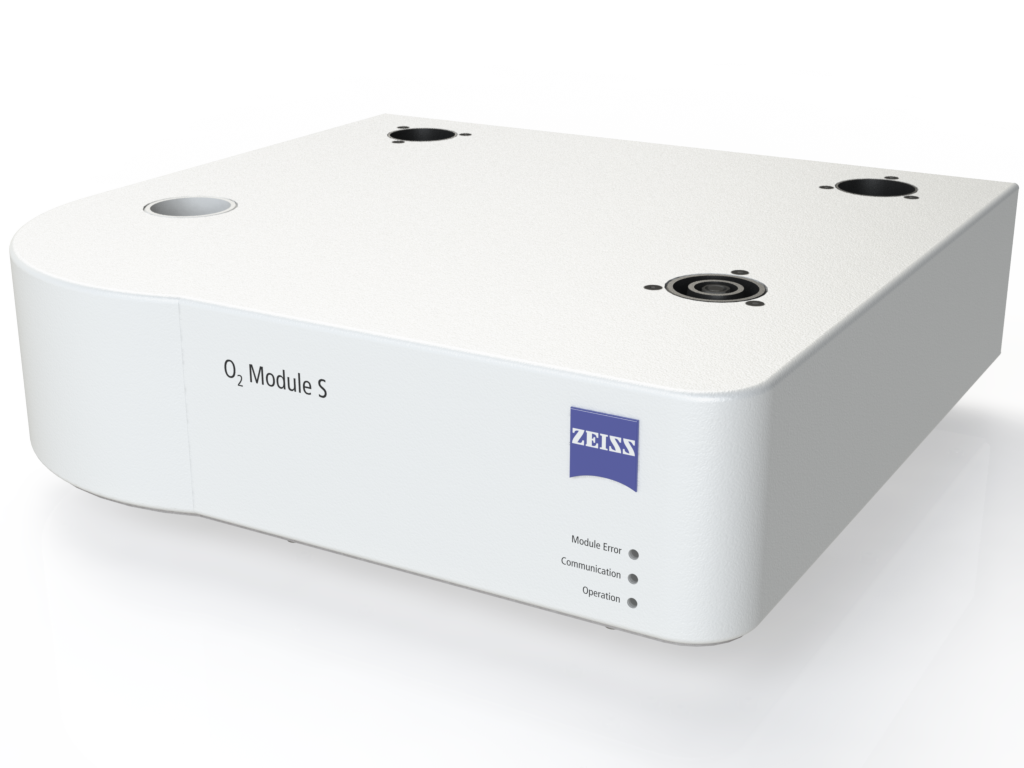

O2 Module S

O2 Module S

O2 con­trol device to achieve a sta­ble, con­trolled decrease of the O2 con­cen­tra­tion with­in PeCon incu­ba­tors. The O2 Mod­ule of Incu­ba­tion Sys­tem S can be put on top of the CO2 Mod­ule and is auto­mat­i­cal­ly sup­plied with elec­tri­cal power and com­mu­ni­ca­tion sig­nal via a sys­tem bus.

Description:

  • O2 con­trol device to achieve a sta­ble, con­trolled decrease of the O2 con­cen­tra­tion by a dis­place­ment with N2 with­in spe­cial incubators
  • A built-in O2 sen­sor per­ma­nent­ly mon­i­tors the O2 con­cen­tra­tion in the air stream
  • A micro pro­por­tion­al valve is dri­ven by a dig­i­tal PID loop con­troller so that only as much N2 as need­ed to main­tain a cer­tain O2 con­cen­tra­tion is fed into the cir­cu­lat­ing air stream
  • All suit­ed incu­ba­tion sys­tems of the man­u­fac­tur­er can be sup­plied with an O2 mix­ture by the O2 Mod­ule S
  • A Humid­i­fi­ca­tion Bot­tle (500 ml) is includ­ed in all PeCon oxy­gen reduc­ing con­trollers, com­pen­sat­ing the strong dry­ing effect of the added gas
  • The O2 Mod­ule S can be stacked on top of the CO2 mod­ule of the incu­ba­tion sys­tem and is auto­mat­i­cal­ly sup­plied with elec­tri­cal power (24 VDC) and com­mu­ni­ca­tion sig­nal via a sys­tem bus
  • The mod­ule is oper­at­ed exclu­sive­ly with an exter­nal user inter­face (PC-Software Zeiss ZEN / Axio­vi­sion (V4.6 or high­er) or TFT dis­play at the micros­cope) and has no dis­play or input panel

Specifications:

Operating voltage 24 V DC
Power consumption max. 370 mA
N2 supply 1 bar (14,5 psi); max. 2 bar (29 psi) Technical N2, Purity ?99 %
O2 display range 0.0 up to 25.0 Vol-% Resolution 0.1 Vol-%
Loop control range (setpoint) 0.0 up to 21.0 Vol-%
Loop control accuracy typ. ± 0.05 % internal resolution 0.01 Vol-%
Dimensions (WxHxD) 313 x 85.5 x 301 mm
Weight approx. 5.7 kg
Operating temperature + 5°C up to + 40°C
Rel. humidity max. 80 %, non-condensing
Altitude max. 2000 m above sea level
Overvoltage category 2
Pollution degree 2
Protection class I
Request for pricing and availability
O2 Module S

Requirements:

Compatibility:

  • all devices of the Zeiss Series S (and the PeCon Series 2000)

Compatible PeCon Products:

Application Examples:
