Heating Insert P 2000

Heating Insert P 2000

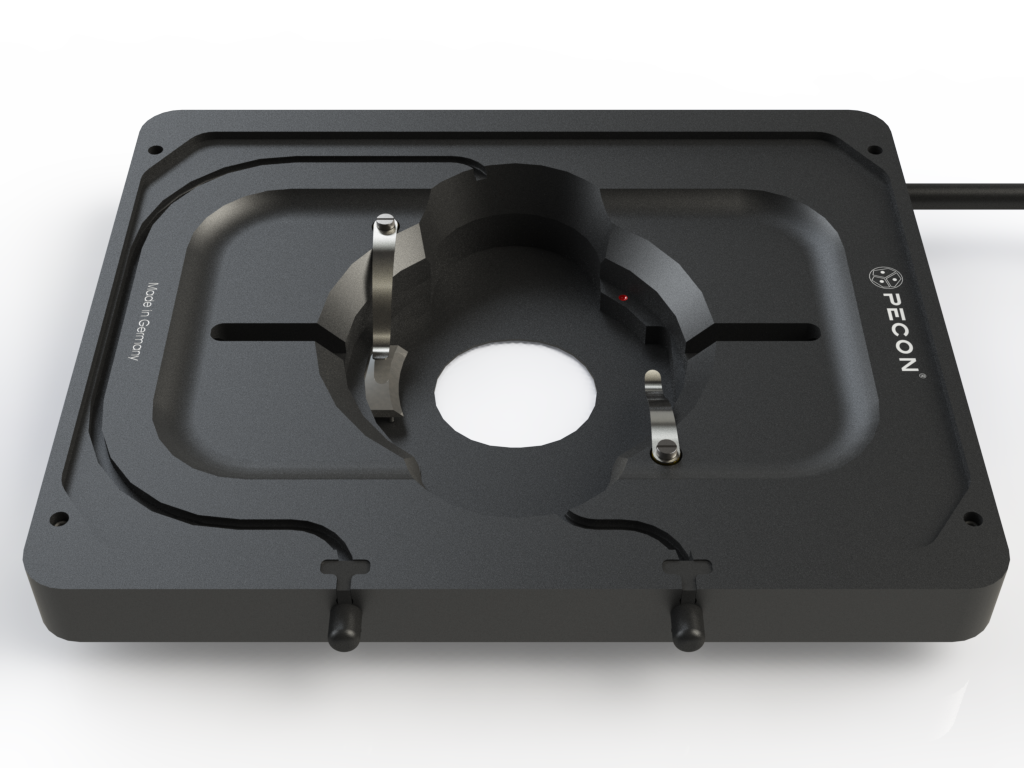

The Heat­ing Insert P 2000 is designed for the sta­ble heat­ing of Petri dish­es and POC Cell Cul­ti­va­tion Sys­tems. It offers a high tem­per­a­ture con­stan­cy and ther­mal conductivity.

Description:

  • Solid heat­ing ele­ment for the sta­ble heat­ing of cell cul­ture systems
  • High tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty - espe­cial­ly suit­ed for laser scan­ning microscopy (LSM)
  • No dis­turb­ing switch­ing puls­es are emitted
  • The oval obser­va­tion open­ing has a cut-out of 32 x 30 mm and is main­ly suit­ed for the use with Petri dish­es (“35” and “60”) and POC Cell Cul­ti­va­tion Systems
  • Equipped with two spring clips for a firm fit of the cell cul­ture vessel
  • A glass cover with a cen­tral glass insert (DIC) is supplied
  • Suit­able for per­fu­sion applications
  • Local CO2 and O2 gassing with the suit­able components

Specifications:

Material aluminium, black anodized
DC operating voltage 24 V DC protective low voltage
Power consumption max. 1.7 A max.
Control range ambient temperature up to 60°C
Thermal protector switch switching temp.:  >70°C resetting temp.:   <50°C
Temperature sensor Pt100
Observation area 32 x 30 mm (oval)
Dimensions (WxHxD) 160 x 135 x 22 mm
Weight approx. 0.8 kg
Request for pricing and availability
Heating Insert P 2000

Requirements:

Compatibility:

  • Scanning or mechanical stages with a cut-out of 160 x 110 mm on inverted microscopes
