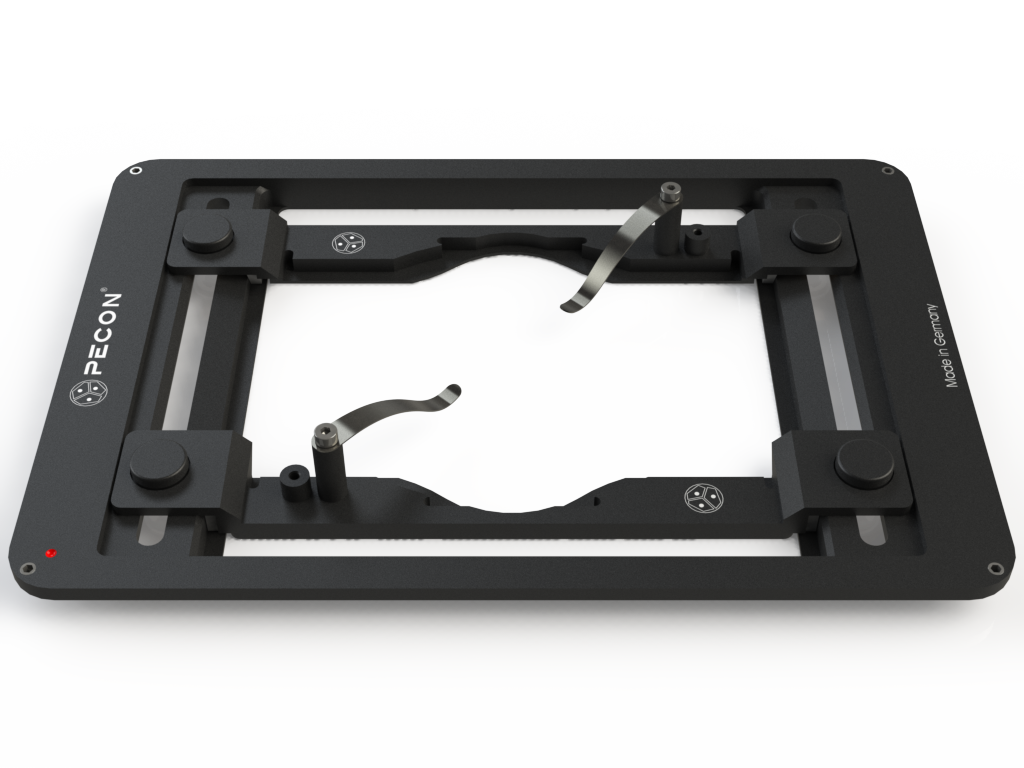

Universal Mounting Frame K100 protected

Universal Mounting Frame K100 protected

This flex­i­ble frame is designed for the fix­a­tion of var­i­ous cell cul­ture ves­sels on inverse micro­scopes. It has been specif­i­cal­ly designed for the use of large Petri dish­es with a max­i­mum diam­e­ter of 92 mm (Petri dish “100”).

Description:

  • Two smooth run­ning, move­able bridges with a vari­able clamp­ing range for an easy and quick fix­a­tion of the cell cul­ture vessel
  • Spring clips for a firm fit of the cell cul­ture vessel
  • Spring clips can be mount­ed to a high­er posi­tion for taller cell cul­ture vessels
  • For incu­ba­tion, the use in com­bi­na­tion with a large incu­ba­tor is recommended

Overview:

Specifications:

Material aluminium, black anodized
Clamping range max. 76.0 mm; min. 14.0 mm;
Specimen size circular: max. Ø 92.0 mm rectangular: max. length 101.0 mm max. width 76.0 mm
Dimensions (LxWxH) 160 x 110 x 8 mm
Weight 200 g
Request for pricing and availability
Universal Mounting Frame K100 protected

Requirements:

  • none

Compatibility:

  • Scanning or mechanical stages with a rectangular opening of 160 x 110 mm on inverse microscopes

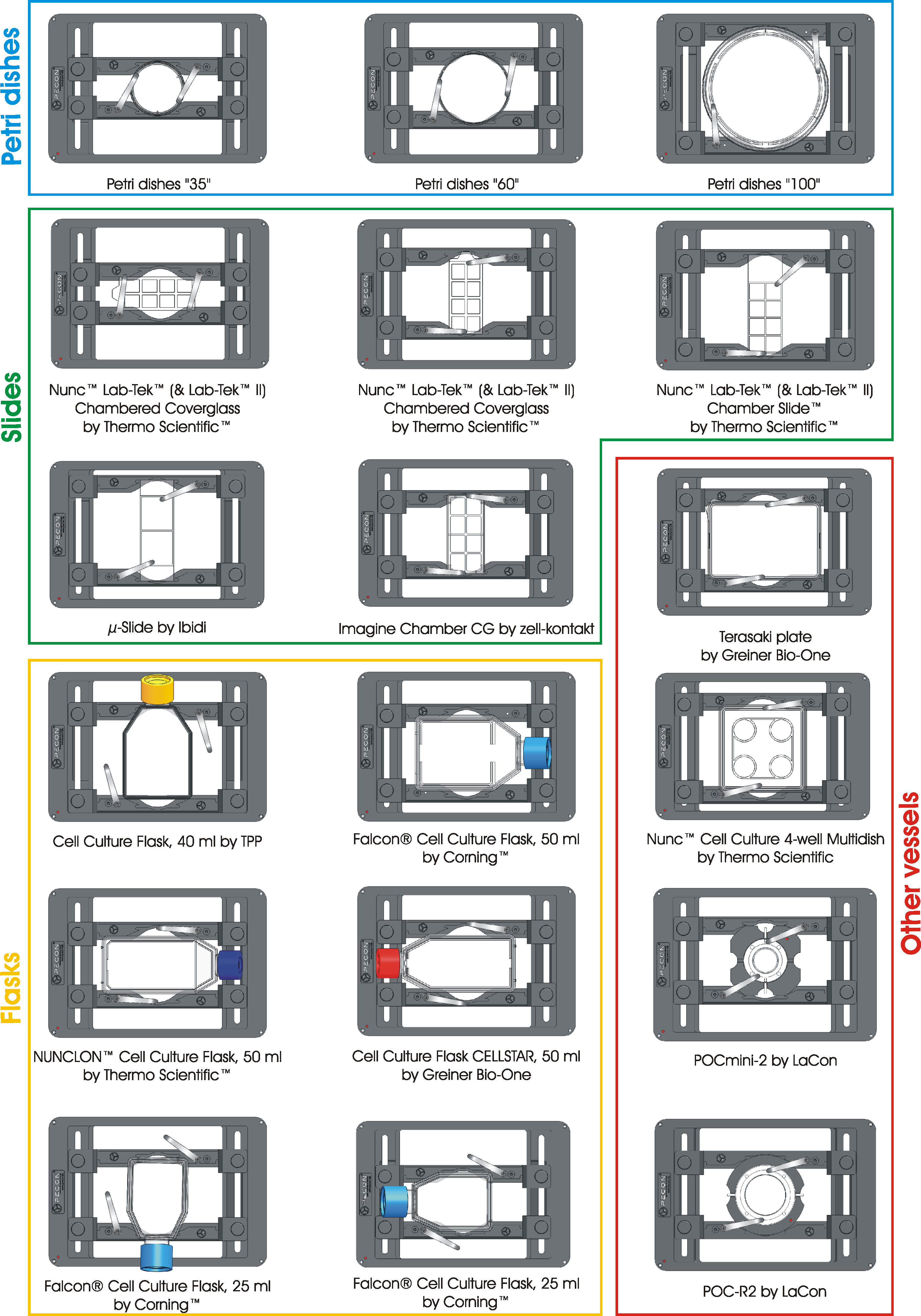

Cell culture vessels (see overview):
  • Petri dish 30 - 92 mm
  • POC-R2 and POCmini-2
  • Object Slide
  • LabTek Chamber Slide
  • LabTek Chambered Coverglass
  • Ibidi Slide
  • Terasaki plate
  • 4-well Multidish
  • Cell culture flasks 25-50 ml

Compatible PeCon Products:

Application Examples:

  • none
