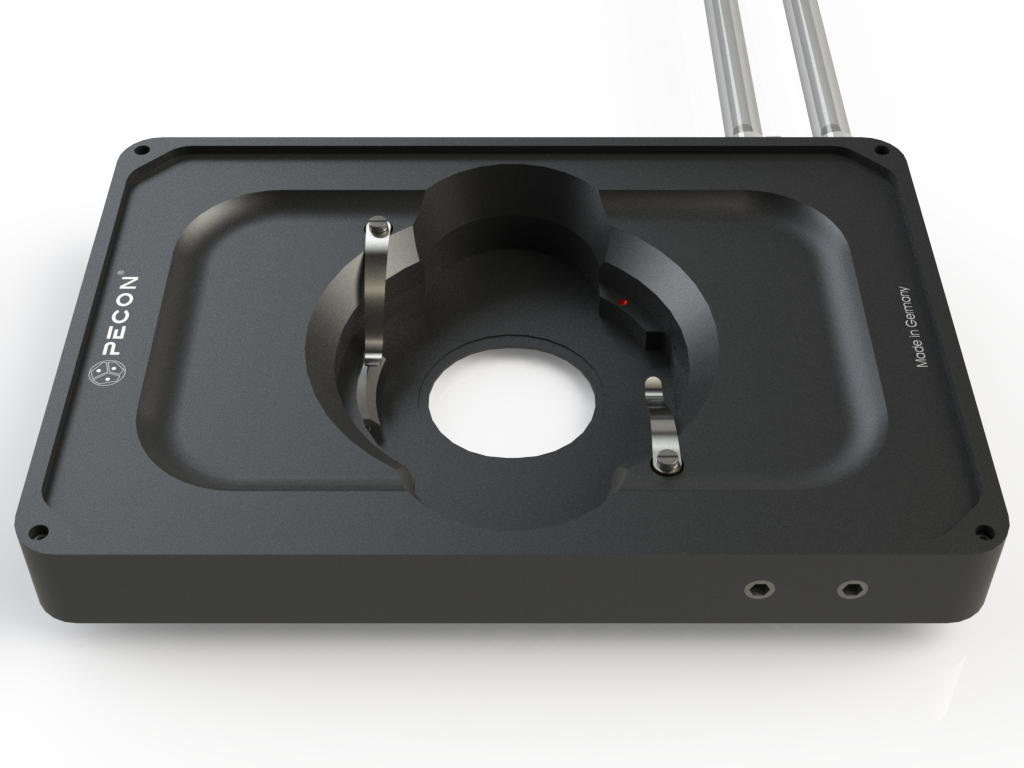

Cooling/Heating Insert P 2000

Cooling/Heating Insert P 2000

The insert is designed for the sta­ble cool­ing and heat­ing of cell cul­ture sys­tems and has a high tem­per­a­ture con­stan­cy and ther­mal con­duc­tiv­i­ty. Made from one piece of alu­mini­um it is espe­cial­ly suit­ed for the cool­ing and heat­ing of of Petri dish­es (“35” and “60”) and POC Cell Cul­ti­va­tion Systems.

Description:

  • Solid cool­ing and heat­ing ele­ment with a uni­form heat dis­tri­b­u­tion and a high ther­mal conductivity
  • Espe­cial­ly for the use with Petri dish­es (“35” and “60”) and POC Cell Cul­ti­va­tion Systems
  • Spec­i­mens are firm­ly seat­ed in the insert: best solu­tion for the work with high mag­ni­fi­ca­tion, for a pre­cise posi­tion­ing, LSM appli­ca­tions and live cell imaging
  • Rec­om­mend­ed for elec­tro­phys­i­o­log­i­cal exper­i­ments because no dis­turb­ing switch­ing puls­es are emitted
  • Suit­able for per­fu­sion applications
  • The tem­per­a­ture range depends on the cir­cu­lat­ing liq­uid and is reg­u­lat­ed at the cir­cu­la­tor­Please also check the Cooling/Heating Insert P Lab-Tek 2000.

Specifications:

Material Aluminum, black anodized
Heating / Cooling Liquids
Temperature range see heating/cooling-circulator
Temperature stability see heating/cooling-circulator
Temperature sensor Pt100
Observation area 32 x 30 mm (oval)
Dimensions (WxHxD) 160 x 130 x 18 (+4) mm
Weight approx. 0.8 kg
Cooling/Heating Insert P 2000

Requirements:

  • Heating-Cooling Cir­cu­la­tor (e.g. Lauda RE 106)

Compatibility:

  • Inverse microscope with mechanical stage or scanning stage
Cell culture vessels:
  • Petri dish 60mm
  • Petri dish 35mm (with supplied Adapter)
  • POC-R2 and POCmini-2
  • Lab-Tek™ (Nunc®) and chambered slides (BD Falcon™)
  • Microscope slides

Application Examples:
