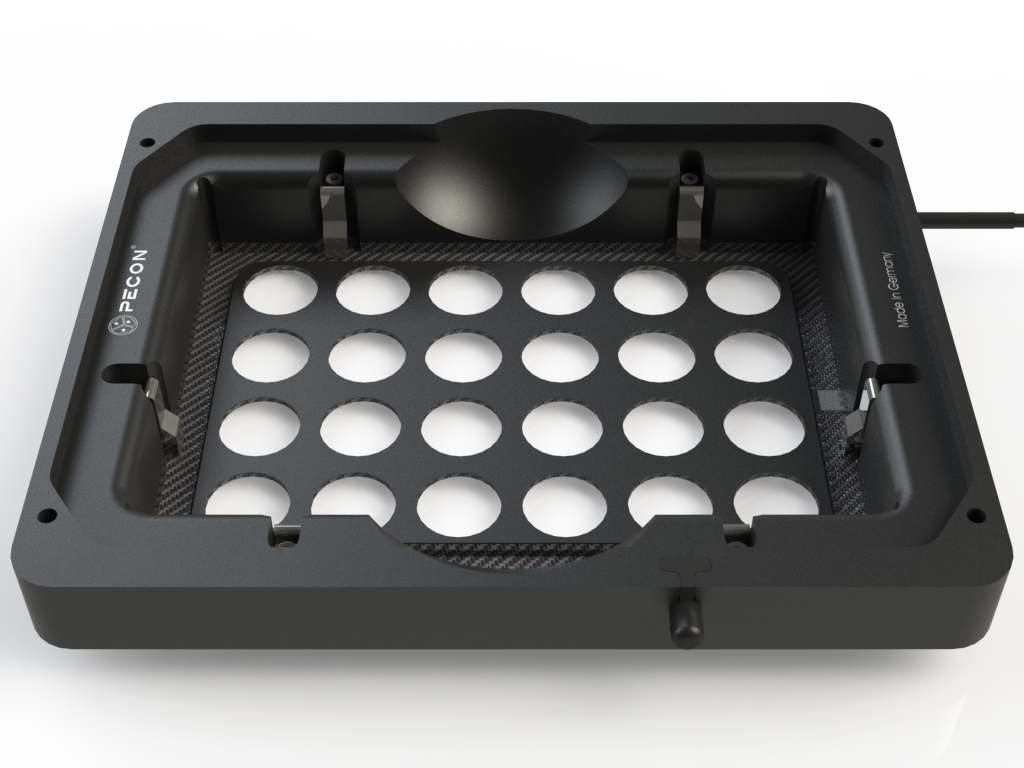

Heating Insert M24 2000 EC

Heating Insert M24 2000 EC

The Heat­ing Insert M24 2000 EC is designed for the sta­ble heat­ing of 6-well mul­ti­well plates with a flat poly­styrene or glass bot­tom. It offers a high tem­per­a­ture con­stan­cy and ther­mal conductivity.

Description:

  • Heat­ing Insert for 24-well mul­ti­well plates
  • Direct­ly from below
  • For a bet­ter heat trans­fer, the obser­va­tion open­ings have a small­er diam­e­ter than the wells
  • The x-y-position of the mul­ti­well plates can be fixed
  • To obtain an incu­ba­tion cham­ber, the insert has to be cov­ered with a small incu­ba­tor or a CO2 cover
  • Local CO2 and O2 gassing with the suit­able components

Specifications:

Material aluminum, black anodized; glass fiber reinforced epoxy resin (FR4)
DC operating voltage 24 V d.c. protective low voltage
Power consumption max. 0.4 A
Temperature sensor Pt100
Control range ambient temperature up to 30°C above ambient
Dimensions (WxHxD) 160 x 135 x 25 mm
Observation area per well (Ø) 15.5  mm
Weight approx. 0.4 kg
Request for pricing and availability
Heating Insert M24 2000 EC

Requirements:

Compatibility:

  • Scanning and mechanical stages with a cut-out of 160 x 110 mm on inverted microscopes
