Description:
- For the use together with following inserts on inverted microscopes:
- Heating Insert P 2000
- Heating Insert P Lab-Tek™ 2000
- Cooling/Heating Insert P 2000
- Cooling/Heating Insert P Lab-Tek 2000
- Heating Insert M06 2000 EC
- Heating Insert M12 2000 EC
- Heating Insert M24 2000 EC
- Heating Insert M48 2000 EC
- Heating Insert M96 2000 EC - Constant gassing of cell cultures with CO2 and/or N2 and an optimal dispersion of the air/gas mixture
- Relative air humidity of approx. 90% under the cover (Humidification Bottle included with the gas control unit)

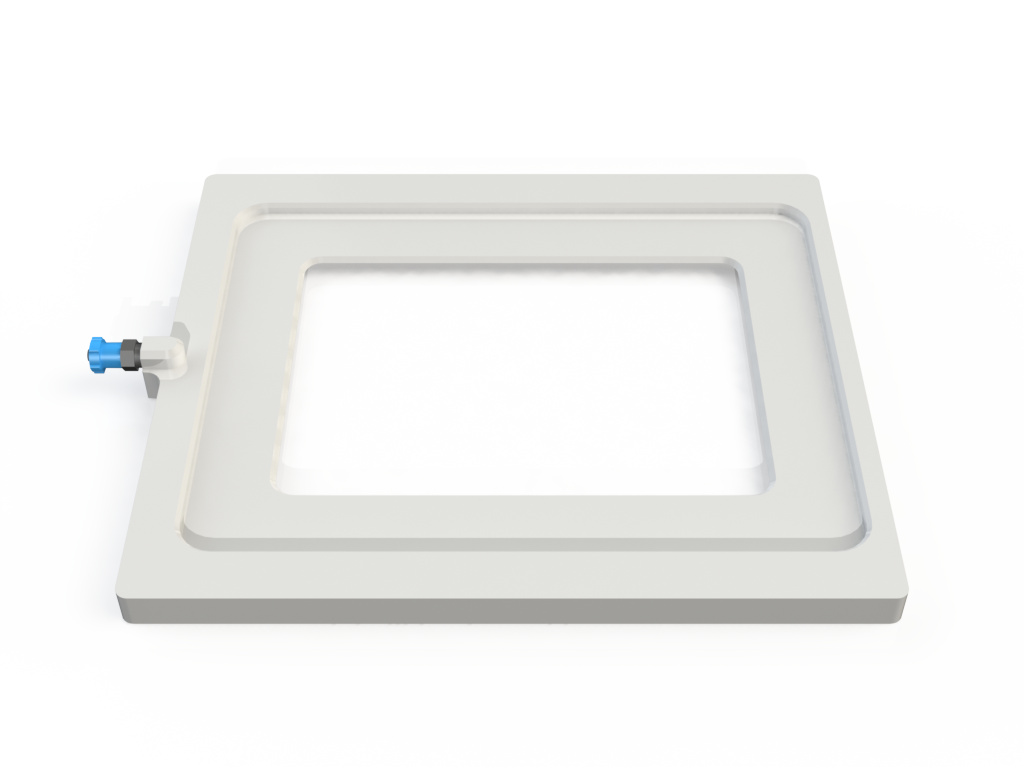

- The cover consists of white PMMA with a glass insert suitable for DIC
Diagram:
Fast and stable gas exchange under this cover, illustrated by the reduction of oxygen down to 0.5% within 1 min. with the use of a CO2-O2-Controller 2000.
Specifications:
| Material | acrylic glass (PMMA) white; glass |
| Dimensions (LxWxH) | 170.5 x 147.5 x 9 mm |
| Observation area (glass insert) (LxW) | 114.5 x 81.5 mm |
| Weight | approx. 150 g |
