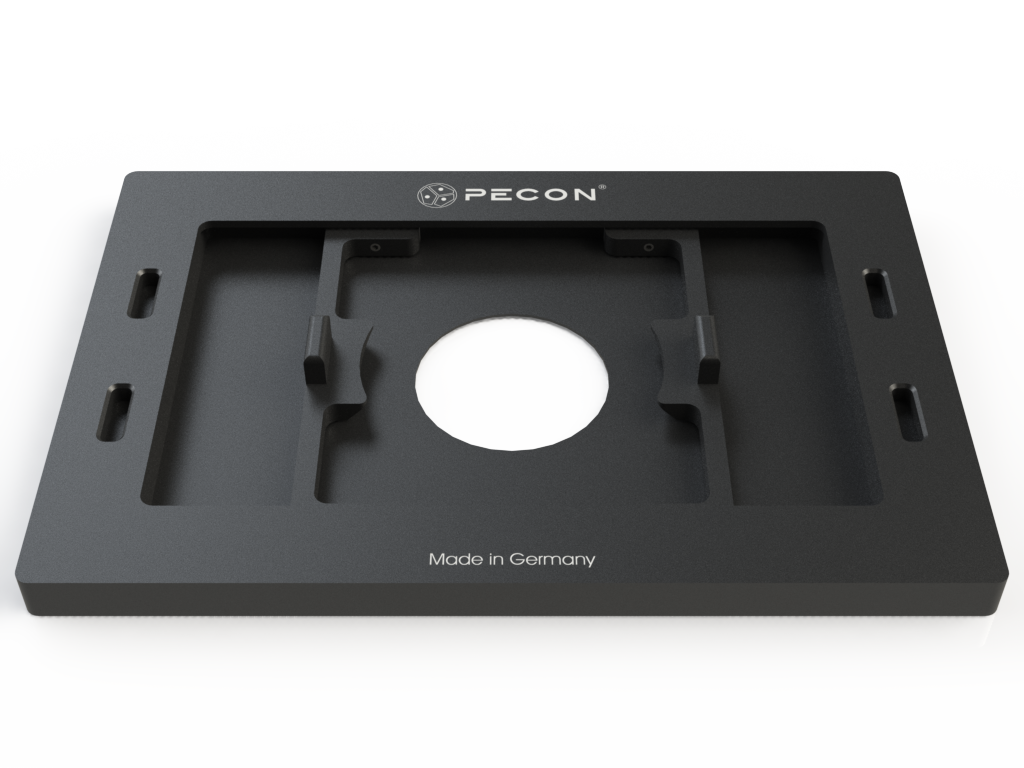

Insert LP-Set

Insert LP-Set

Insert set for the fix­a­tion of var­i­ous cell cul­ture ves­sels on the Piezo Z-Stage (Ludl) on inverse microscopes.

Description:

  • Flex­i­ble frame for the Piezo Z-Stage to fix var­i­ous cell cul­ture vessels
  • 4 dif­fer­ent base plates are included:

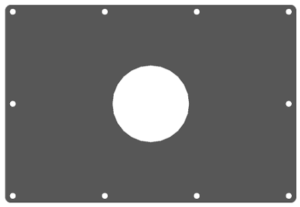

    - for Petri dish­es Ø 30 mm and POCmini-2 Cell Cul­ture System

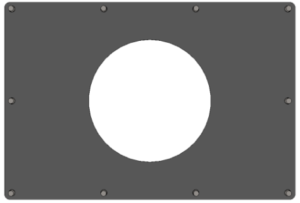

    - for Petri dish­es Ø 60 mm and POC-R2 Cell Cul­ture System

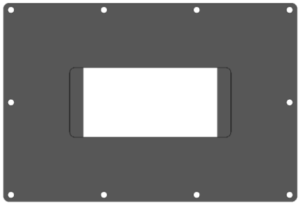

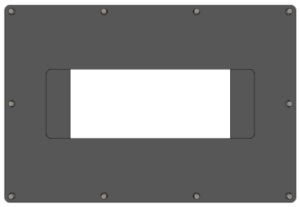

    - for Object slides, Lab-Tek II Cham­bered Coverglasses
    - for Ibidi µ-Slides
  • The weight of the Insert JP in com­bi­na­tion with the CO2-Cover JP is approx. 150 g
  • Two move­able, smooth-running brack­ets with a vari­able clamp­ing range allow an easy and quick fixation
  • The frame can be lev­elled in the stage by 4 screws
  • For a local gassing, the CO2-Covers LP (trans­par­ent or black) are an ideal enhancement
  • Overview Insert LP-Set + CO2-Cover LP

Specifications:

Material aluminium, black anodized
Dimensions (LxWxH) 128 x 86 x 7 mm
Weight (Frame with plate) approx. 105 g
Request for pricing and availability
Insert LP-Set

Requirements:

  • Inverse micro­scopes with Piezo Z-Stage (Ludl)

Compatibility:

The following insert plates for a variety of cell culture vessels are included:
Petri dishes "35", POCmini-2
Petri dishes "60", POC-R2
Nunc™ Lab-Tek™ II
Chambered Coverglasses
Ibidi µ-Slides

Compatible PeCon Products:

Application Examples:
