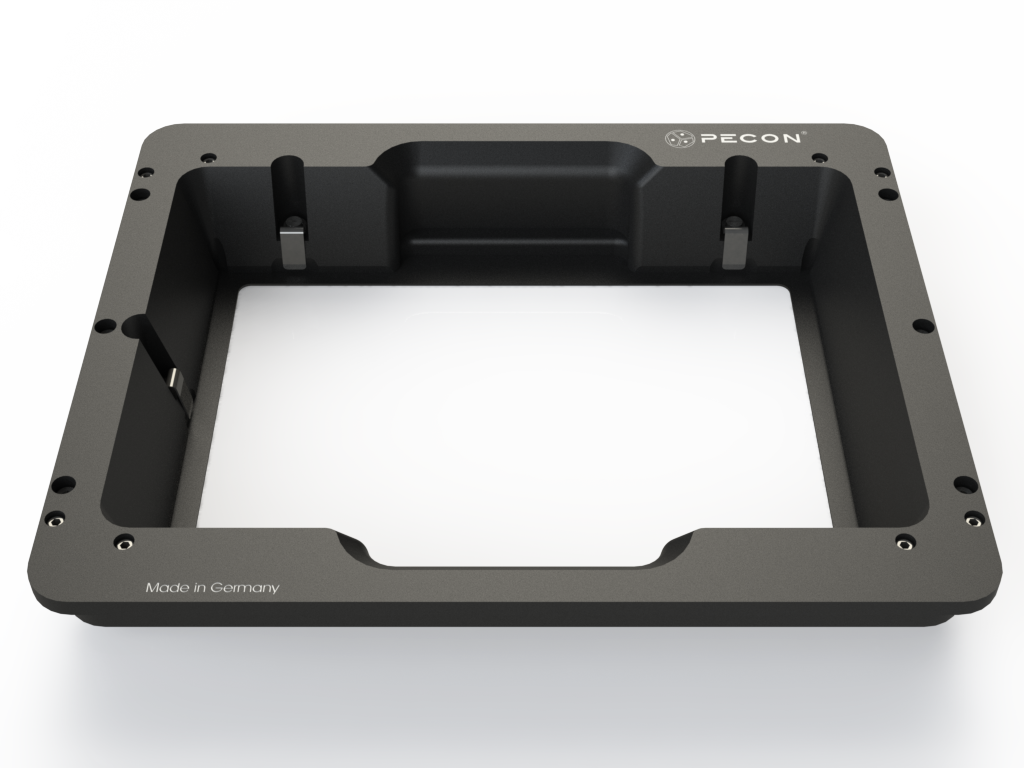

Insert AM

Insert AM

Insert for the firm fix­a­tion of mul­ti­plates or the Insert LP-Set on the micros­cope. It can also be used as a base frame for the Click-In Sys­tem, with which var­i­ous cell cul­ture ves­sels can be used.

Description:

  • Non-heated insert
  • Suit­ed for the use with ASI-Stages
  • Solid con­struc­tion; espe­cial­ly suit­ed for laser scan­ning microscopy (LSM)
  • The rec­tan­gu­lar obser­va­tion area has the mea­sures 120 x 180 mm
  • For mul­ti­well plates of all man­u­fac­tur­ers, the use with the Insert LP-Set or the Click-In System
  • Cell incu­ba­tion is pos­si­ble in com­bi­na­tion with the CO2-Cover AM and CO2 and/or O2 con­trol units inside a large incubator

Specifications:

Material aluminium, black anodized
Dimensions (LxWxH) 160 x 130 x 29 mm
Observation opening (LxW) 120 x 80 mm
Weight approx. 0.34 kg
Request for pricing and availability
Insert AM

Requirements:

  • none

Compatibility:

  • Especially for the use with ASI stages

Compatible PeCon Products:

Application Examples:
